New technology 100m CCTV PTZ bullet camera

FOB Reference Price:Get Latest Price
US $0-139.9 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Huisun
Model Number:
HS-SCB405IP-V10-(E)
Type:
IP Camera
Style:
Bullet Camera
Sensor:
CCD, 1/2.8" Sony Exmor CMOS Sensor
Technology:
Pan / Tilt / Zoom
Special Features:
Waterproof / Weatherproof
Name:
Mini PTZ bullet camera
Zoom:
10X Optical 10X digital
Effective pixels:
1080P(1080X1920)
Double stream:
1080p+D1
IR distance:
100m
Pan speed:
0.5°~15°/s
Pan range:
300°
Tilt speed:
0.5°~10°/s
Tilt range:
-5°~60°
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
New technology 100m CCTV PTZ bullet camera package: Suitable carton
Port
Shenzhen
Lead Time :
15 working days

           New technology 100m CCTV PTZ bullet camera



(

Our advantage

1:First Patent of Out Cool Air Circulation to Sink the Heat Technology.(Patent No.ZL201220269676.7)

2:First Patent of Video Analysis Light-adjustment Technology .(Patent No.201110089768.7)

3: The Highly power  array LEDs with IR range up to 60 meters

4: Built-in digital HD module,the image can up to 1080p

5  Built-in camera :10X optical zoom.

6: Ambarella  A5S compression program,SONY HD Senor.

7 OSD menu in Chinese and English system.

8:The working consumption of Infrared lamp can be set separately by menu,related with the optical zoom.

9:Illumination value of installation environment can be defected.

10:Intelligent temperature control design, can display real-time inside temperature of the dome camera.

11: Infrared light control software, suitable for various  occasions

12: Automatic defrost and defog function( manual operation)

13: IP66/ level 2  lightning protection,4000V prevent  thunderbolt surges design .

Technical parameters

Model

HS-SCB405HP-C06

Product name

New technology 100m CCTV PTZ bullet camera

Sensor

1/2.8" Sony Exmor CMOS Sensor

Effective pixels

1080P(1920X1080)

Zoom

5.1-51mm

Day/night mode

Automatic /multicolour /monochrome

Focus mode

Automatic/ manual

Noise-signal ratio

2D/3D-DNR

Back light compensation

Off/on

White Balance

Automatic/ manual

Electronic shutter

1/25s ~ 1/100000s

Gain control

Automatic/ manual

Min illumination

0lux (IR ON)

Wide dynamic range

Support

Network parameters



Max image

1920*1080

Double stream

1080p+D1

Heartbeat function

Support

Security mechanism

Password protection, multi user access is controlled

Communications protocol

TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,FTP,802.1x,QoS,

HTTPS, IPv6 (SIP,SRTP,optical), ONVIF

Double stream

Support

Interface

One network interface, one power input

Infrared lamp



IR View Distance

4 high power array LEDs with IR

IR lamp control

100 meters

IR lamp consumption

Automatic  /manual / camera

Speed dome cameara



Pan speed

Pan speed:0.5°~15°/s,speed is settable;pan preset speed:20°/s

Tilt speed

Tilt speed:0.5°~10°/s ,speed is settable;Tilt preset speed:20°/s

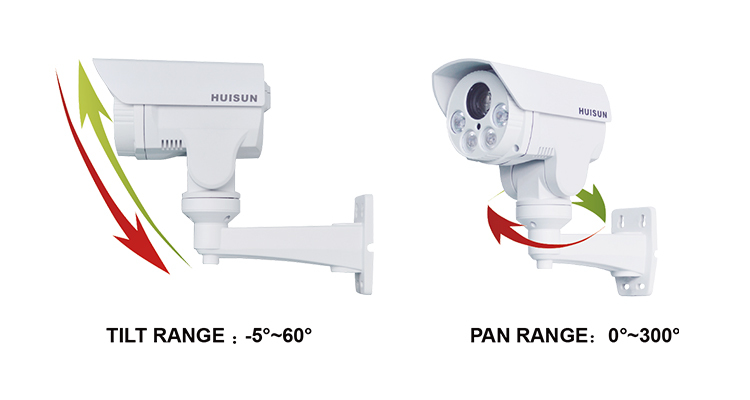

Rotation

Pan: 300° continuous rotation; Tilt: -5°~60° auto flip

Preset

256 presets ( Chinese title)

Auto Scan

8 groups, settable boundaries and scan speed

Auto Cruise

8 groups, each with 32 presets with settable time interval

Pattern Tour

4 groups, each with 500 instructions

Video analysis

Support

OSD menu

OSD menu with Chinese and English

Heat dispersion structure

Out Cool Air Circulation to Sink the Heat Technology

Levels of protection

IP66/ level 2  lightning protection,4000V prevent  thunderbolt surges design

Working environment

-35℃-+55℃ DC12V±10%  1.5A <90%,No condensation

Factory test

test

Exhibition

2013 450

Factory show

Factory

Our service

1.Any inquiries will be replied within 24 hours

2.Professional manufacturer for more information, welcome to visit our website
3.OEM/ODM are available
1) Silk print logo on the camera
2) Customized camera or any your idea on camera, we can help you to design and put it into production
3).High quality, fashion designs, reasonable & competitive price, fast delivery time
4.Faster delivery:
Sample order in stock, and 3-10 days for bulk production
5. After-sales service
1) All products will have been strictly QC before packing
2) All products will be well packed before shipping
3) All our products have 1 year warranty with long time maintenance Technical support
