Wide angle view ,solar ,swann ,taxi,rohs ,OEM cctv security camera

FOB Reference Price:Get Latest Price
US $1-420 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
China-HUISUN
Model Number:
DM-RBC305IPT-K20IA-W1
Type:
Digital Camera
Style:
Dome Camera
Sensor:
CMOS, 1/3 CCD sony IMX122
Technology:
Infrared
Special Features:
Waterproof / Weatherproof
Product name:
Wide angle view ,solar ,swann ,taxi,rohs ,OEM cctv security camera
Protection Level:
IP66/ level 2 /4000V
size:
5 inch
Ir distance:
100 meters
pixel:
2 MP (1080 P)
Ir lamp:
high power Arrany LED
Auto tracking:
yes
wiper:
Yes
certifications:
CE/FCC/RoHS/ISO9001
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
packing of Wide angle view ,solar ,swann ,taxi,rohs ,OEM cctv security camera
packling size :2.8 X 2.8 X 3.6 CM
Port
shenzhen
Lead Time :
5 days ( as order)

 Wide angle view ,solar ,swann ,taxi,rohs ,OEM cctv security camera  1.jpg



Product Detail

Product name

 Wide angle view ,solar ,swann ,taxi,rohs ,OEM cctv security camera

Camera


Model

 DM-RBC305IPT-K20IA-W1

Sensor

1/3"Progressigve Scan CMOS

Effective pixels

2 mega pixel

Zoom

20 Optical zoom( 4-88mm)VIDEO AF

Focus length

F=4.7~94mm

Communication protocol

VISCA

Day/night mode

Automatic/multicolour/monochroma

Focus mode

Automatic/manual

S/N

 > 52dB

BLC

Off/ON

White banlance

Automatic/manual

Electronic shutter

no

AGC

Auto/manual

Min illumination

Multi-color:0.05lux/monochtome0.0 1lux

Wide dynamic range

support

Infrared lamp

IR distance

100 meters

IR lamp

The high power Arrany LEDs with IR

IR power

16 w

IR Lens

Combination lens

Dome

Pan speed

Pan speed 0.01°/s~100 °/S ,speed is settable, pan preset speed100 °/S

Tilt speed

Tilt speed 0.01°/s~100 °/S ,speed is settable,pan preset speed100  °/S

Rotation

Pan :0~360° continuous rotation tilt:-10~90 auto flip

Preset

256 preset (chinese tilt)

Auto scan

8 groups, settable boundaries and scan speed

Auto cruise

8 groups each with 32 presets with settable time interval

Pattern tour

4 groups each with 500 instructions

Video analysis

support

Auto track

yes

Packaged structure with

no

OSD menu

Chinese and English

Wiper

yes

Power box

optional

Heat dispersion

Out Cool Air Circulation to Sink the Heat Technology

Supply voltage

DC12V±10%

Levels of protection

IP66/Level2 lightness protection,4000w prvent thunderbolt surges design

Working temperature

-35°C - + 55 °C

Working humidity

<90% No condensation

Consumption

Max 35W

Weight

4.8 kg

Accessory

Wall -mount bracket DC 12 Power

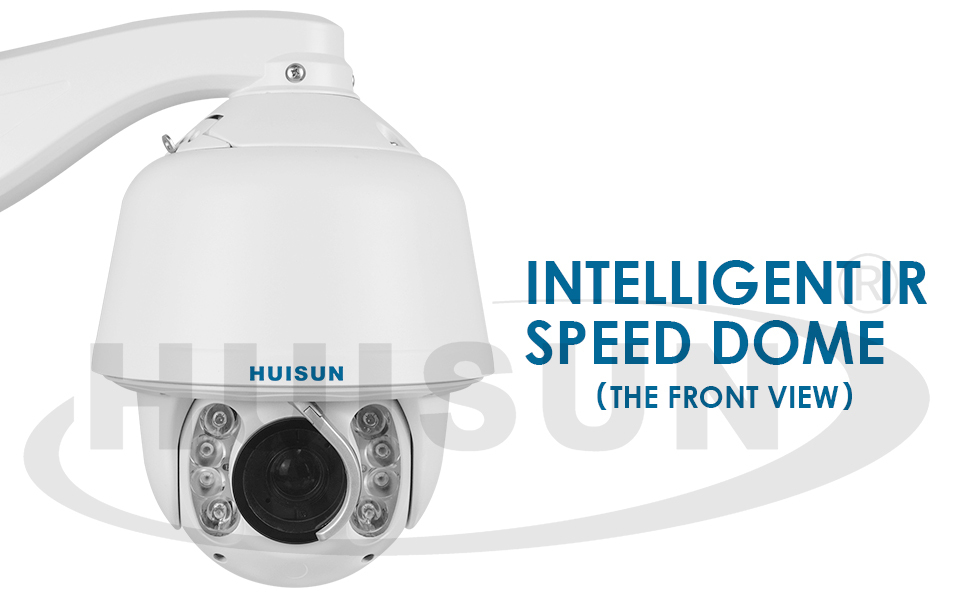

Function of outdoor waterproof auto tracking 1080 P 20 X Infrared speed dome security CCTV IP camera

  1. First patent of built-in heat sinking .(patent no ZL 2012202696676.7) Water and dust proof with high reliability.
  2. First patent of video Analysis light-adjustment technology.
  3. The Highly power array LEDs with IR range up to 100meters
  4. Wipers equipped to ensure a clear and crispy video image(Optional  configuration
  5. Highly pervious to light composite lens,to enhance the effect of IR Projection .
  6. Intelligent video analysis capabilities to detect the designated area.
  7. inch alloy aluminum construction design for housing.  (patent).
  8. OSD menu in Chinese and English
  9. Modular circuit design ,support the selftesting of the core module10.Support 3D positioning function(with the specified master device
  10. The dome program can be upgraded online remotion.

 Hot sales

hot sale speed dome

How to install

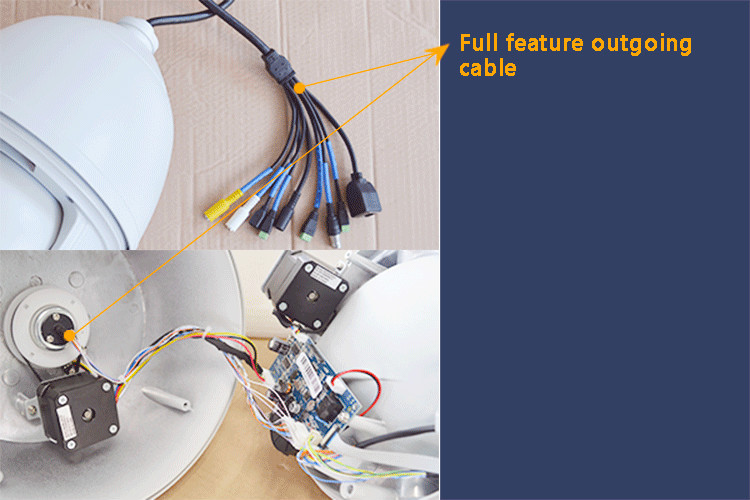

Inner detail




Core feature


 003.jpg 004.jpg

Application Area

--

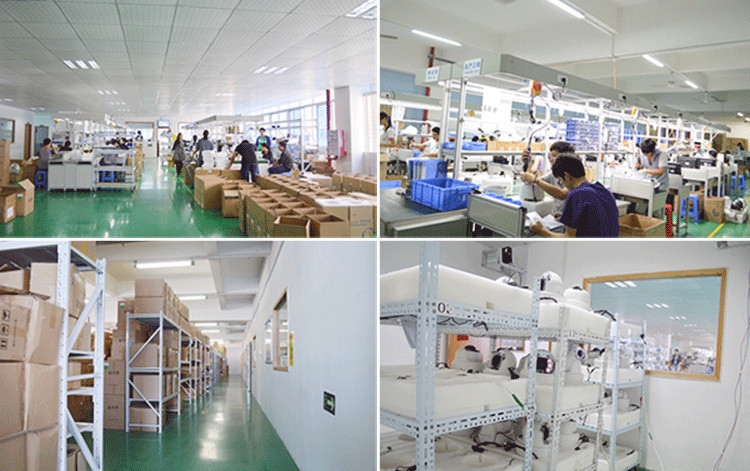

Company Information



HUISUN CCTV IP Camera cerficication






Packaging & Shipping



Shipping of  Wide angle view ,solar ,swann ,taxi,rohs ,OEM cctv security camera

1.We have strong cooperation with  UPS,  DHL,  FEDEX,  TNT,  EMS , China Air Post.

 2.You can also choose your own shipping forwarder.

packing size:280X280X370 MM









Our Services

  We have rich OEM experience. If you are our customers, you will be offered:

1. Free repair within one year after the shipment of products from us.
2. Replacement within 30 days after the shipment of products from us due to products' problems.
3. We can print your logo and stick your model No.on the cameras.
4. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
5. Professional technician supports. We have a good after-sales service team. They can solve your problems in time.
6.All goods will be inspected and tested before shipment.
7Customer`s satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Trademanager or Email.It will be responded within 24 hours.
