3g outdoor invisible security camera network IP PTZ camera

FOB Reference Price:Get Latest Price
US $1-1,000 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
China-HUISUN-high speed dome camera
Model Number:
RDC305FHPT-K20HA-W1
Type:
Analog Camera
Style:
Dome Camera
Sensor:
CMOS
Technology:
Infrared
Special Features:
Waterproof / Weatherproof
Product name:
3g outdoor invisible security camera network IP PTZ camera
weight:
4.8 kg
size:
5 inch
Ir distance:
100 meters
pan speed:
Pan speed 0.01°/s~360°/s,speed is settable, pan preset speed360°/S
Ir lamp:
10 high power Arrany IR LED
Auto cruise:
8 groups each with 32 presets with settable time interval

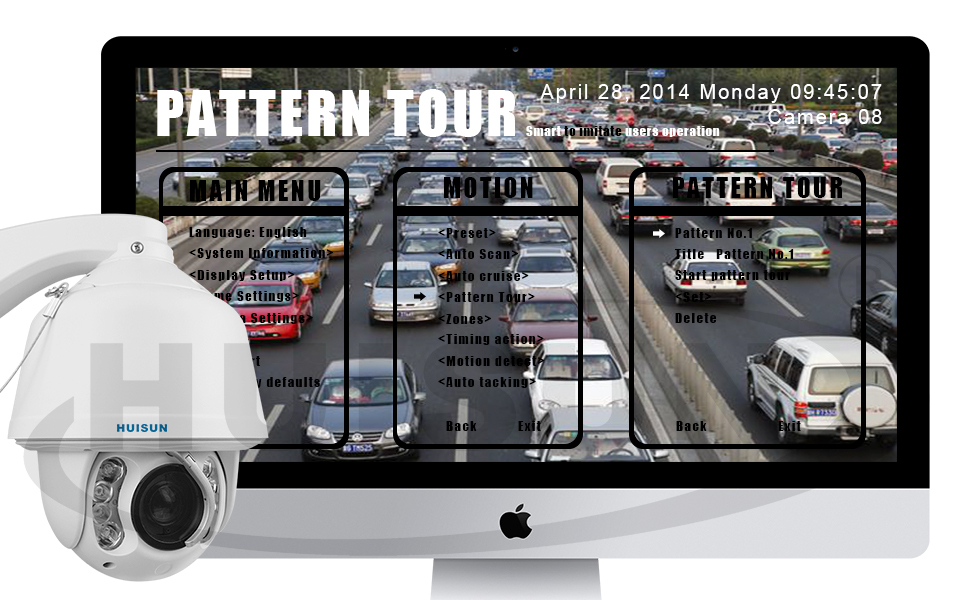

Pattern tour:
4 groups each with 500 instructions
Video analysis:
Yes
wiper:
yes
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
packing of 3g outdoor invisible security camera network IP PTZ camera :Box in inner,2 box in one carton.
packing size: 2.8 X 2.8 X 3.6 CM
Port
shenzhen
Lead Time :
5 days ( as order)

Specifications

3g outdoor invisible security camera network IP PTZ camera
Out Cool Air Circulation to Sink the Heat Technology
with wiper

   3g outdoor  invisible security camera network IP PTZ camera




Product Detail

Product name

 3g outdoor  invisible security camera network IP PTZ camera

Model

 RDC305FHPT-K20HA-W1

Sensor

 1/3" progressive Scan CMOS

Effective pixels

 1.3 Mega

Zoom

20 X Optical zoom

Focus length

F= 4.7-94mm

Communication protocol

RS232/HIKVISION/SONY VISCA

Day/night mode

Automatic/multicolour/monochroma

Focus mode

Automatic/manual

S/N

 > 50dB

BLC

Off/ON

White banlance

Automatic/manual

Electronic shutter

1/25-1/10000

AGC

Auto/manual

Min illumination

Multi-color:0.1lux/monochtome0.1lux

Wide dynamic range

no

Infrared lamp

IR distance

100 meters

IR lamp

The high power Arrany LEDs with IR

IR power

16 w

IR Lens

Combination lens

Dome

Pan speed

Pan speed 0.01°/s~360°/s,speed is settable, pan preset speed360°/S

Tilt speed

Tilt speed 0.01°/s~120°/s,speed is settable,pan preset speed120°/S

Rotation

Pan :0~360° continuous rotation tilt:-10~90° auto flip

Preset

256 preset (Chinese tilt)

Auto scan

8 groups, settable boundaries and scan speed

Auto cruise

8 groups each with 32 presets with settable time interval

Pattern tour

4 groups each with 500 instructions

Video analysis

support

Auto track

yes

Packaged structure with

no

OSD menu

Chinese and English

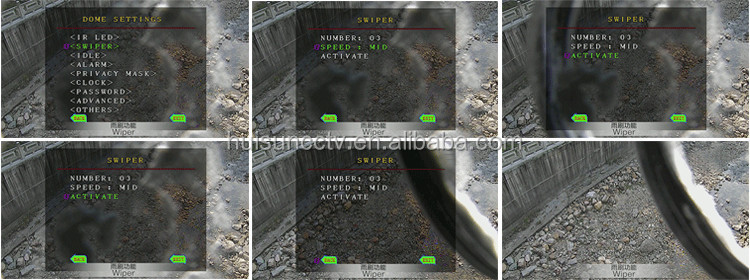

Wiper

yes

Power box

optional

Heat dispersion

Out Cool Air Circulation to Sink the Heat Technology

Supply voltage

DC12V±10%

Levels of protection

IP66/Level2 lightness protection,4000w prvent thunderbolt surges design

Working temperature

-35°C - + 55 °C

Working humidity

<90% No condensation

Consumption

Max 35W

Weight

4.8 kg

Accessory

Wall -mount bracket DC 12 Power



Funcation of  3g outdoor  invisible security camera network IP PTZ camera

  1. First patent of built-in heat sinking .(patent no ZL 2012202696676.7) Water and dust proof with high reliability.
  2. First patent of video Analysis light-adjustment technology.
  3. The Highly power array LEDs with IR range up to 100meters
  4. Wipers equipped to ensure a clear and crispy video image(Optional  configuration
  5. Highly pervious to light composite lens,to enhance the effect of IR Projection .
  6. Intelligent video analysis capabilities to detect the designated area.
  7. inch alloy aluminum construction design for housing.  (patent)
  8. OSD menu in Chinese and English
  9. Modular circuit design ,support the selftesting of the core module10.Support 3D positioning function(with the specified master device)
  10. The dome program can be upgraded online remotion





How to install


Inner detail





Core feature






Night view performance

006003

Company Information



 -



Packaging & Shipping



Shipping of 3g outdoor  invisible security camera network IP PTZ camera

1.We have strong cooperation with  UPS,  DHL,  FEDEX,  TNT,  EMS , China Air Post.

 2.You can also choose your own shipping forwarder.

packing size:280X280X370 MM









Our Services

  We have rich OEM experience. If you are our customers, you will be offered:

1. Free repair within one year after the shipment of products from us.
2. Replacement within 30 days after the shipment of products from us due to products' problems.
3. We can print your logo and stick your model No.on the cameras.
4. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
5. Professional technician supports. We have a good after-sales service team. They can solve your problems in time.
6.All goods will be inspected and tested before shipment.
7Customer`s satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Trademanager or Email.It will be responded within 24 hours.
