1.3 mega sony IMX138 COMS sesor IP PTZ CCTV Camera

FOB Reference Price:Get Latest Price
US $1-1,000 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
China-HUISUN
Model Number:
DM-RDC305HPT-K20HB-W1
Type:
Digital Camera
Style:
Dome Camera
Sensor:
CMOS
Technology:
Infrared
Special Features:
Waterproof / Weatherproof
Product name:
1.3 mega sony IMX138 COMS sesor IP PTZ CCTV Camera
weight:
4.8 kg
size:
5 inch
Ir distance:
100 meters
pan speed:
Pan speed 0.01°/s~120°/s,speed is settable, pan preset speed120°/s
Ir lamp:
high power Arrany LED
Auto cruise:
8 groups each with 32 presets with settable time interval
Pattern tour:
4 groups each with 500 instructions
Video analysis:
Yes
wiper:
optional
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
packing of 1.3 mega sony IMX138 COMS sesor IP PTZ CCTV Camera : 2 box in one carton.
packing size: 2.8 X 2.8 X 3.6 CM
Port
shenzhen
Lead Time :
5 days ( as order)

Specifications

1.3 mega sony IMX138 COMS sesor IP PTZ CCTV Camera
support ONVIF
IP66 Protection level
256 preset numbers

  1.3 mega sony IMX138 COMS sesor IP PTZ CCTV Camera


Product Detail

Product name

1.3 mega sony IMX138 COMS sesor IP PTZ CCTV Camera

Model

DM-RDC305HPT-K20HB-W1

Sensor

1/3"Progressigve Scan CMOS

Effective pixels

1.3mega pixel

Zoom

20 Optical zoom( 4-88mm)VIDEO AF

Focus length

F=4.7~94mm

Communication protocol

VISCA

Day/night mode

Automatic/multicolour/monochroma

Focus mode

Automatic/manual

S/N

 > 52dB

BLC

Off/ON

White banlance

Automatic/manual

Electronic shutter

no

AGC

Auto/manual

Min illumination

Multi-color:0.05lux/monochtome0.0 1lux

Wide dynamic range

support

Infrared lamp

IR distance

100 meters

IR lamp

The high power Arrany LEDs with IR

IR power

16 w

IR Lens

Combination lens

Dome

Pan speed

Pan speed 0.01°/s~100 °/S ,speed is settable, pan preset speed100 °/S

Tilt speed

Tilt speed 0.01°/s~100 °/S ,speed is settable,pan preset speed100  °/S

Rotation

Pan :0~360° continuous rotation tilt:-10~90 auto flip

Preset

256 preset (chinese tilt)

Auto scan

8 groups, settable boundaries and scan speed

Auto cruise

8 groups each with 32 presets with settable time interval

Pattern tour

4 groups each with 500 instructions

Video analysis

support

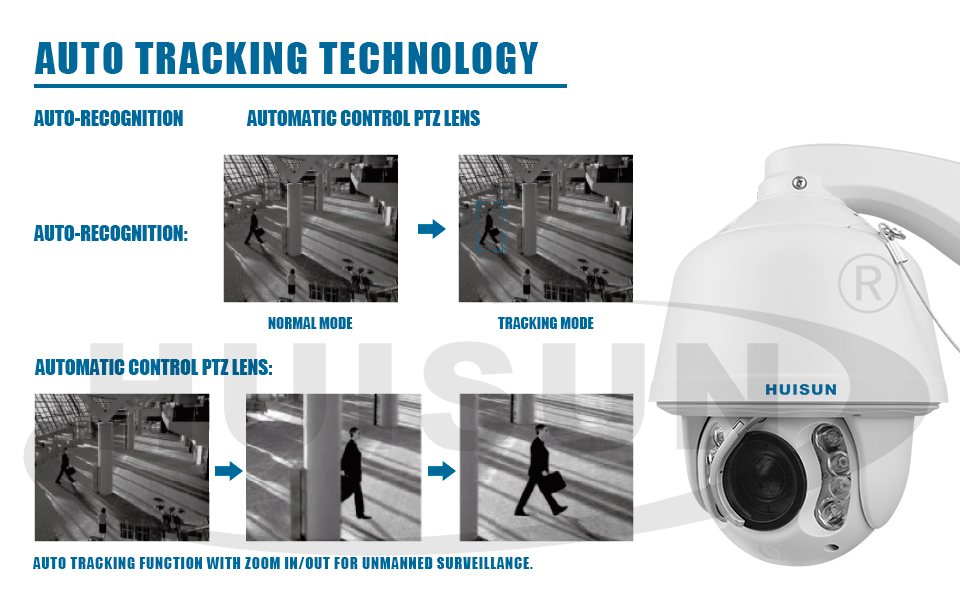

Auto track

yes

Packaged structure with

no

OSD menu

Chinese and English

Wiper

yes

Power box

optional

Heat dispersion

Out Cool Air Circulation to Sink the Heat Technology

Supply voltage

DC12V±10%

Levels of protection

IP66/Level2 lightness protection,4000w prvent thunderbolt surges design

Working temperature

-35°C - + 55 °C

Working humidity

<90% No condensation

Consumption

Max 35W

Weight

4.8 kg

Accessory

Wall -mount bracket DC 12 Power



Features :

  1. First patent of built-in heat sinking .(patent no ZL 2012202696676.7) Water and dust proof with high reliability.
  2. First patent of video Analysis light-adjustment technology.
  3. The Highly power array LEDs with IR range up to 100meters
  4. Wipers equipped to ensure a clear and crispy video image(Optional  configuration
  5. Highly pervious to light composite lens,to enhance the effect of IR Projection .
  6. Intelligent video analysis capabilities to detect the designated area.
  7. inch alloy aluminum construction design for housing.  (patent).
  8. OSD menu in Chinese and English
  9. Modular circuit design ,support the selftesting of the core module10.Support 3D positioning function(with the specified master device
  10. The dome program can be upgraded online remotion.
