Full HD IP ptz camera 1080p 2.0 Megapixels PAN/TILT/ZOOM

FOB Reference Price:Get Latest Price
US $1-150 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HUISUN
Model Number:
RDA216FIPT-G-WN20IB-W1
Type:
Digital Camera
Style:
Dome Camera
Sensor:
CMOS
Technology:
Infrared
Special Features:
Waterproof / Weatherproof
IR Distance:
120 meter
Optical ZOOM:
20X
Definition:
2.0 mega pixel
Protection Level:
IP66/ level 2 /4000V
Alarm:
support (Optional)
Wiper:
support (Optional)
Auto tracking:
support (Optional)
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
standard export package
Port
FOB shenzhen & EXW
Lead Time :
3-10 working days

Specifications

1. IR 120M 20X Zoom 1080P
2. Optional Wiper & Auto tracking design
3.1-year warranty with lifelong maintance technical support

Main Feature:



First Patent of Out Cool Air Circulation to Sink the Heat Technology(Patent No.ZL201220269676.7)

u First Patent of Video Analysis Light-adjustment Technology .(Patent  No.201110089768.7)

The Highly power  array LEDs with IR range up to 120meters

u   Unique composite lens design, to enhance the effect of night vision.

 Patent external wiper design, to make sure the HD image is clearer all day.(Optional configuration).

Built in power with wall mounted bracket design, making it more convenient for maintenance  on site.

Auto tracking function for unman surveillance





Technical parameters



Model

RDA216FIPT-G-WN20IA-W1

Sensor

1/3” Panasonic New Generation CMOS Sensor

Effective pixels

2.0 mega Pixels

Focus length

Optical x20, Digital x32 Zoom

communication protocol

PAL/NTSC

Day/night mode

Automatic/multicolour/monochroma

Focus mode

Automatic/manual

S/N

50dB

BLC

0 ~ 20

White banlance

Automatic/manual

Electronic shutter

Off / On (Max 42dB)

AGC

Auto / Shutter PRI / Iris PRI / Manual

Min illumination

2.0 mega pixel

Video input

Connector

Infrared lamp

IR distance

120 meters

IR lamp

The high power Arrany LEDs with IR

IR power

18 w

IR Lens

Combination lens

Dome

Pan speed

Pan speed 0.01°/s~360°/s

Tilt speed

Tilt speed 0.01°/s~120°/s

Rotation

Pan :0~90° continuous rotation tilt:-10~90° auto flip

Preset

256 preset (chinese tilt)

Auto scan

8 groups, settable boundaries and scan speed

Auto cruise

8 groups each with 32 presets with settable time interval

Pattern tour

4 groups each with 500 instructions

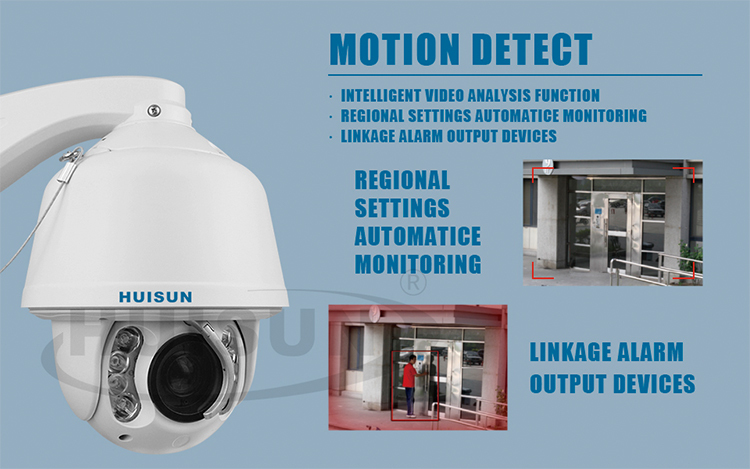

Video analysis

support

Auto track

yes

Packaged structure with

no

Timing Action

RTC clock design for timing events during the whole week

Wiper

yes

Power box

optional

Heat dispersion

Out Cool Air Circulation to Sink the Heat Technology

Supply voltage

9V to 15V DC

Levels of protection

IP66/Level2 lightness protection,4000w prvent thunderbolt surges design

Working temperature

-20 ~ +60 (Humidity : 20%RH ~ 95%RH)

Working humidity

<90% No condensation

Consumption

Max 35W

Weight

4.8 kg

Accessory

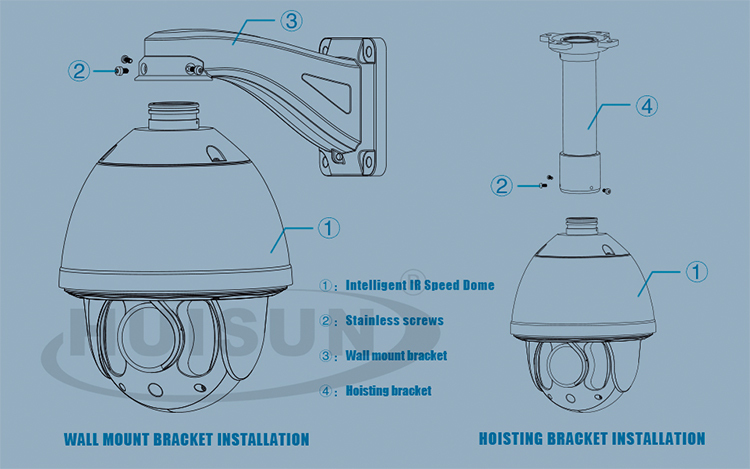

Wall -mount bracket DC 12 Power




Visual Effects






Exhibition in the world



--

Certificates

----

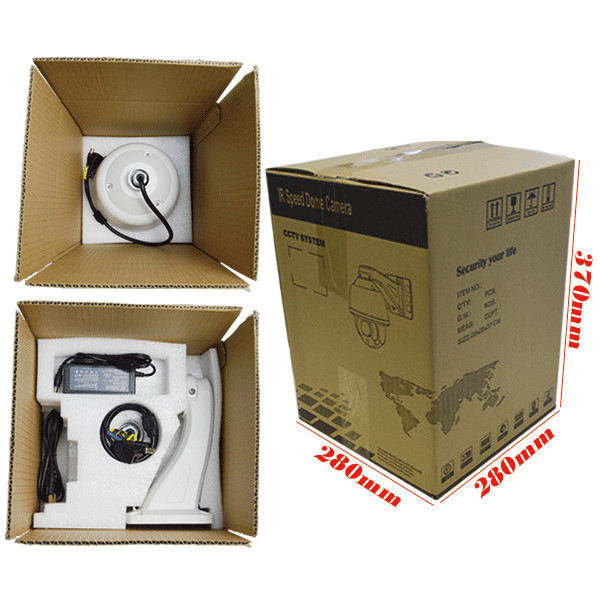

Package & shipping
